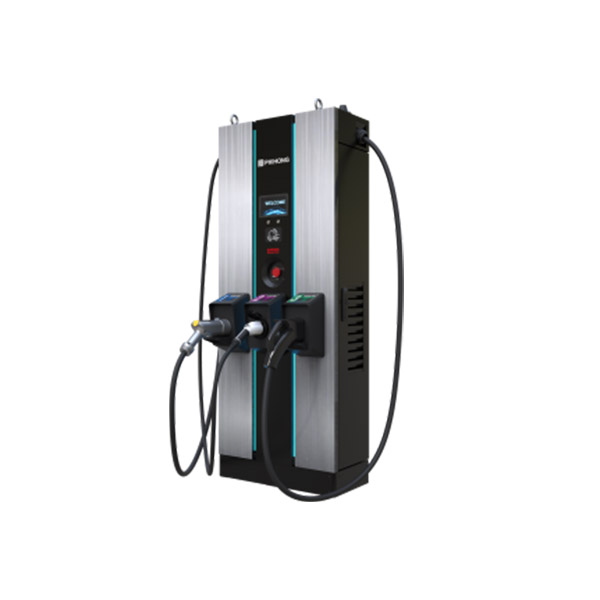

60kW 快速直流充電樁
DS系列 - 支援多種充電界面
特性：
支援多種充電界面CHAdeMO, CCS1 Combo, CCS2 Combo, GB/T 及搭配一個歐規IEC 交流三相43kW 輸出插座, 或UL 美規交流單相22kW 的J1772 充電槍
功因 > 0.99
效率 > 94%
OCPP 1.6 JSON
具有RFID 讀卡器
7 吋LCD 螢幕，並具有良好的使用者界面
使用有線乙太網路, 或無線WIFI, 3G/4G 連接到後台系統
IK10( 不含螢幕和RFID 模組)，IP55
可客制化，容易安裝及維護
特性：
支援多種充電界面CHAdeMO, CCS1 Combo, CCS2 Combo, GB/T 及搭配一個歐規IEC 交流三相43kW 輸出插座, 或UL 美規交流單相22kW 的J1772 充電槍
功因 > 0.99
效率 > 94%
OCPP 1.6 JSON
具有RFID 讀卡器
7 吋LCD 螢幕，並具有良好的使用者界面
使用有線乙太網路, 或無線WIFI, 3G/4G 連接到後台系統
IK10( 不含螢幕和RFID 模組)，IP55
可客制化，容易安裝及維護
說明
| DS series | ||
| Model No. | DS60 | |
| AC Input | Input Rating | (CE model) 380 ~ 415 Vac ± 15% / (UL/cUL model) 480 Vac |
| AC Input Connection | 3P + N + PE(Wye configuration),TN/TT(CE, UL/cUL) and IT(CE) | |
| Max. Input Current (A) | 200 | |
| Frequency (Hz) | 50 / 60 | |
| Power Factor | >0.99 @ full load | |
| Efficiency (%) | 94 | |
| DC Output | Output Voltage Range | CCS/GBT : 150~950 Vdc |
| Max. Output Current |
CHAdeMO：150~500Vdc AC(CE)：220Vac / AC(UL)：277Vac CCS/GBT：63A@950Vdc |
|
| Max. Output Current(A) |
CHAdeMO/CCS/GBT：120A@500Vdc AC(CE)：3Φ63A@220Vac / AC(UL)：1Φ80A@277Vac |
|
| Max. Output Power (kW) | DC 60kW / AC single Phase 22kW, or AC 3 Phase 43kW | |
| Voltage Accuracy (%) | ± 1 | |
| Current Accuracy (%) | ± 1 | |
| User Interface & Control | Display | 7'' TFT-LCD |
| Push Buttons | Operation button / Emergency Stop | |
| User Authentication | RFID system ISO / IEC14443A/B | |
| Communication | External | Ethernet / WiFi or 3G/4G |
| Internal | CANbus / RS485 | |
| Environmental | Operating Temperature (°C) | -30˚C ~ 50˚C |
| Humidity (%) | 5%~ 95% RH,non-condensing | |
| Altitude (m) | ≦ 2000 | |
| IP Level | IP55 / IK10(not include screen and RFID module) | |
| Cooling method | Fan cooling | |
| Mechanical | Dimension (WxDxH mm) | 1800 x700 x331mm |
| Weight (kg) | ≦ 235kg | |
| Cable Length(m) | CCS1(4m),CCS2(4m),GB/T(4m),CharmedO(4m),dual gun+AC Socket or J1772(4m) | |
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Residual current detection,Surge protection |
| Output Protection | Output short, OCP, OVP, UVP, OTP, Residual current detection | |
| Regulation | Certificate | IEC 61851-1：2017,IEC 61851-23,IEC 61851-24,IEC 61851-21-2,UL2594,L2202 |
| Safety | CE, UL/cUL, GB/T and CHAdeMO v1.2 | |
| Charging Interface | CHAdeMO V1.2, ISO15118, DIN 70121, GB/T 27930-2015 | |
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
