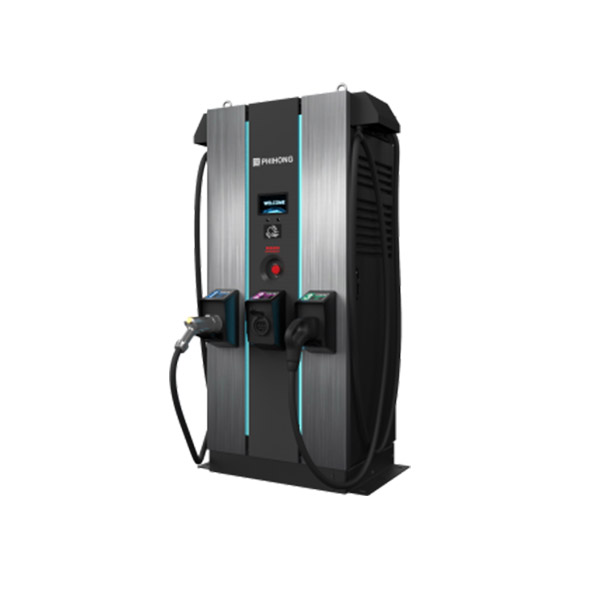

120kW/180kW 快速直流充電樁
DS系列 - 支援多種充電界面
支援多種充電界面CHAdeMO, CCS1 Combo, CCS2 Combo, GB/T 及搭配一個歐規IEC 交流三相43kW 輸出插座, 或UL 美規交流單相22kW 的J1772 充電槍
功因 > 0.99
效率 > 94%
OCPP1.6 JSON
具有RFID 讀卡器
7 吋LCD 螢幕，並具有良好的使用者界面
使用有線乙太網路, 或無線WIFI, 3G/4G 連接到後台系統
IK10( 不含螢幕和RFID 模組)， IP55
使用無( 有) 線網路連接到後台系統
可客制化，容易安裝及維護
支援多種充電界面CHAdeMO, CCS1 Combo, CCS2 Combo, GB/T 及搭配一個歐規IEC 交流三相43kW 輸出插座, 或UL 美規交流單相22kW 的J1772 充電槍
功因 > 0.99
效率 > 94%
OCPP1.6 JSON
具有RFID 讀卡器
7 吋LCD 螢幕，並具有良好的使用者界面
使用有線乙太網路, 或無線WIFI, 3G/4G 連接到後台系統
IK10( 不含螢幕和RFID 模組)， IP55
使用無( 有) 線網路連接到後台系統
可客制化，容易安裝及維護
說明
| DS series | |||
| Model No. | DS120 | DS180 | |
| AC Input | Input Rating |
(CE model) 380 ~ 400 Vac ± 15% (UL/cUL model) 480 Vac |
(CE model) 380 ~ 400 Vac ± 15% (UL/cUL model) 480 Vac |
| AC Input Connection | 3P + N + PE(Wye configuration),TN/TT(CE, UL/cUL) and IT(CE) | ||
| Max. Input Current (A) | 320 | 380 | |
| Frequency (Hz) | 50Hz / 60Hz | ||
| Power Factor | >0.99 @ full load | ||
| Efficiency (%) | 94 | ||
| DC Output | Output Voltage Range |
CCS/GBT：150~950Vdc CHAdeMO：150~500Vdc AC(CE)：220Vac / AC(UL)：277Vac |
CCS/GBT：150~950Vdc CHAdeMO：150~500Vdc AC(CE)：220Vac / AC(UL)：277Vac |
| Max. Output Current |
CCS/GBT：126A@950Vdc CCS/GBT：200A@600Vdc CHAdeMO：120A@500Vdc AC(CE)：3Φ63A@220Vac AC(UL)：1Φ80A@277Vac |
CCS/GBT：190A@950Vdc CCS/GBT：200A@900Vdc CHAdeMO：120A@500Vdc AC(CE)：3Φ63A@220Vac AC(UL)：1Φ80A@277Vac |
|
| Max. Output Power (kW) |
DC 120kW / AC 1-phase 22kW, or AC 3-phase 43kW |
DC 180kW / AC 1-phase 22kW, or AC 3-phase 43kW |
|
| Voltage Accuracy (%) | ± 1 | ||
| Current Accuracy (%) | ± 1 | ||
| User Interface & Control | Display | 7'' TFT-LCD | |
| Push Buttons | Emergency Stop | ||
| User Authentication | RFID ISO14443A (M1/MIFARE Card) | ||
| Display Information | Charging process and status / Alarm and warning messages | ||
| Communication | External | Ethernet (standard) and WiFi/4G (choose 1) | |
| Internal | CANbus / RS485 | ||
| Environmental | Operating Temperature (°C) | -20˚C ~ 50˚C,power derating from 50 and above | |
| Humidity (%) | 5% ~ 90% RH, non-condensing | ||
| Altitude (m) | ≦ 2000m | ||
| IP Level | IP55 / IK10(not include screen and RFID module) | ||
| Cooling method | Fan cooling | ||
| Mechanical | Dimension (WxDxH mm) | 1900 x 1070 x 650 mm | |
| Weight (kg) | ≦ 430kg | ||
| Cable Length(m) | CCS1(4m), CCS2(4m), GB/T(4m), CHAdeMO(4m), AC Socket or J1772(4m) | ||
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Residual current detection, Surge protection,Cabinet-open detection | |
| Output Protection | SCP, OCP, OVP, LVP, OTP, Residual current detection | ||
| Regulation | Certificate | UL 2202, UL2231 | |
| Safety | CE, UL/cUL, GB/T and CHAdeMO v1.2 | ||
| Charging Interface | CHAdeMO V1.2, ISO15118, DIN 70121, GB/T 20234.3-2015 | ||
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
