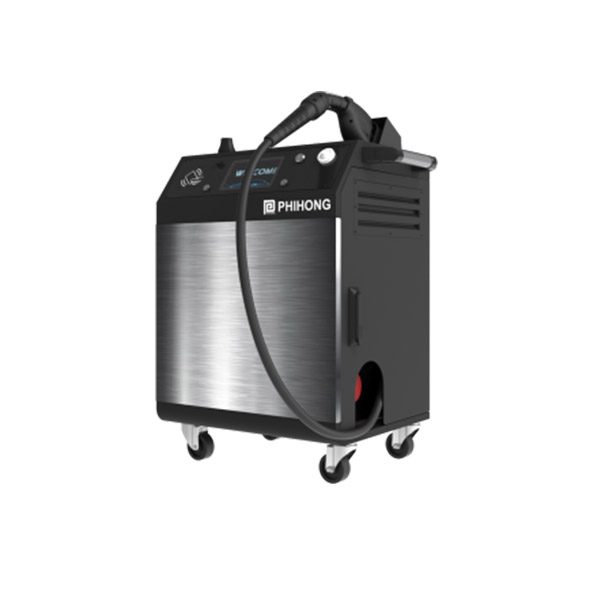

30kW 移動式直流充電樁
DM系列 - 整合式RFID 讀卡機
特性：
支援多種(Multi-Standards) 充電槍 CCS1 Combo, CCS2 Combo, CHAdeMO 及GB/T
效率 > 94％
僅支援RJ45 乙太網路或 3G / 4G/WIFI 連接到後端 系統
整合式RFID 讀卡機
可客制化，容易安裝及維護
PF> 0.99（APFC）
OCPP1.6 JSON
7 吋LCD 螢幕，並具有良好的使用者界面
IK10( 不含螢幕和RFID 模組)，IP55
特性：
支援多種(Multi-Standards) 充電槍 CCS1 Combo, CCS2 Combo, CHAdeMO 及GB/T
效率 > 94％
僅支援RJ45 乙太網路或 3G / 4G/WIFI 連接到後端 系統
整合式RFID 讀卡機
可客制化，容易安裝及維護
PF> 0.99（APFC）
OCPP1.6 JSON
7 吋LCD 螢幕，並具有良好的使用者界面
IK10( 不含螢幕和RFID 模組)，IP55
說明
| DW series | ||
| Model No. | DM30 | |
| AC Input | Input Rating | (CE model) 380 ~ 415 Vac ± 15% / (Compatible to UL/cUL model) 480 Vac |
| AC Input Connection | 3P + N + PE ( Wye configuration), TN/TT | |
| Max. Input Current (A) | 60A | |
| Frequency (Hz) | 50 / 60 | |
| Power Factor | >0.99 @ full load | |
| Efficiency (%) | ≧94% | |
| DC Output | Output Voltage Range | 150~500Vdc (CHAdeMO) / 150~950Vdc (CCS) |
| Max. Output Current | 60A@500Vdc / 31.5A@950 Vdc | |
| Max. Output Power (kW) | 30 ± 1% | |
| Voltage Accuracy (%) | ± 1 | |
| Current Accuracy (%) | ± 1 | |
| User Interface & Control | Display | 7" TFT-LCD |
| Push Buttons | Operation push button/system power source key switch (or ON/OFF switch, either) | |
| User Authentication | RFID System ISO / IEC14443A/B | |
| Communication | External | Ethernet / WiFi /3G,4G |
| Internal | CANbus / RS485 | |
| Environmental | Operating Temperature (°C) | -30 ~ 50, power deration from 50 and above |
| Humidity (%) | 5~90% RH, non-condensing | |
| Altitude (m) | ≦ 2000m | |
| IP Level | IP 55 / IK10 (not include screen and RFID module) | |
| Cooling method | Fan cooling | |
| Mechanical | Dimension (WxDxH mm) | TBD |
| Weight (kg) | TBD | |
| The Cable Length of Charging Connector (m) | 3 | |
| Protection | Input Protection | OVP, OCP, OPP, OTP, UVP, Residual current detection, transient voltage |
| Output Protection | Output shor, OCP, OVP, UVP, OTP, Leakage current | |
| Regulation | Certificate | IEC 61851-1, IEC 61851-23, IEC 61851-21-2, UL2597, UL2202(Compatible) |
| Safety | CE, ChAdeMO v1.2 and Compatible to UL/cUL, GB/T model | |
| Charging Interface | CHAdeMO 1.2, ISO15118, DIN 70121, GB/T 27930-2015 | |
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
