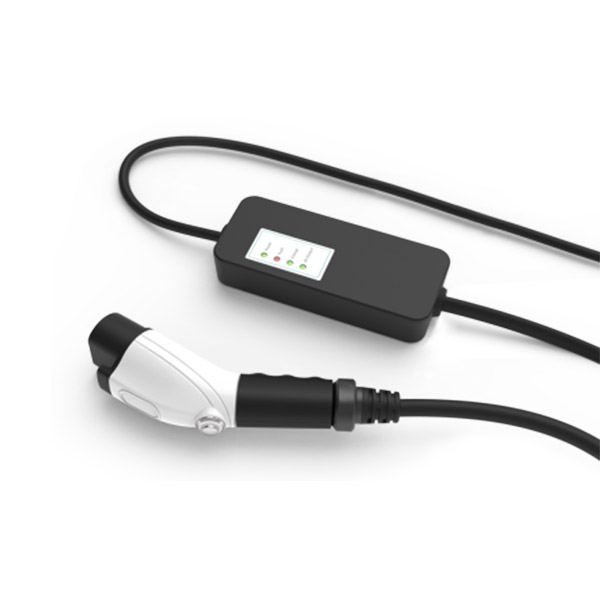

16A 便攜式交流纜線盒
AC系列 - 提供過電流、過電壓及輸出短路保護
特性：
提供過電流、過電壓及輸出短路保護
具接地保護功能，可保證交流電源與電動車之間的接地連續性
良好的防水特性
特性：
提供過電流、過電壓及輸出短路保護
具接地保護功能，可保證交流電源與電動車之間的接地連續性
良好的防水特性
說明
| AC series | |||
| Model No. | AC0E380 | AC6U380 | |
| AC Input | Input Rating | Single phase：200 ~ 240VAC ± 10% | |
| AC Input Connection | CEE7/7 (L / N / PE) | NEMA 6-20 (L1 / L2 / GND) | |
| Max. Input Current (A) | 16 | ||
| Frequency (Hz) | 50 / 60 | ||
| AC Output | Max Output Current | 8A - 16A | 8A - 16A |
| Environmental | Operating Temperature (°C) | -30 ~ 50 | |
| Humidity (%) | Max. 95% RH | ||
| Altitude (m) | ≦ 2000m | ||
| IP Level | IP66 | ||
| Cooling method | Natural Cooling | ||
| Mechanical | Dimension (WxDxH mm) | 100 x 80 x 200 | |
| Weight (kg) | ≦ 3.5Kg | ||
| Cable Length(m) | 5 | ||
| Protection | Input Protection | UVP, OVP, Residual current detection, Surge protection, Ground fault | |
| Output Protection | OCP & Pilot fault | ||
| Internal | OTP, Relay welding detection, MCU function fault detection | ||
| Regulation | Certificate | IEC 61851-1-2017, IEC 62752(IC-CPD) | UL2594, UL2231-1 / -2 |
| Safety | CE | UL / cUL | |
| Charging Interface | IEC 62196-2-2016 Type 2 | SAE J1772 Type 1 | |
Applications
- Highway gas / service station
- Parking garage
- EV dealer workshops
- Commercial fleet operators
- EV infrastructure operators / service providers
