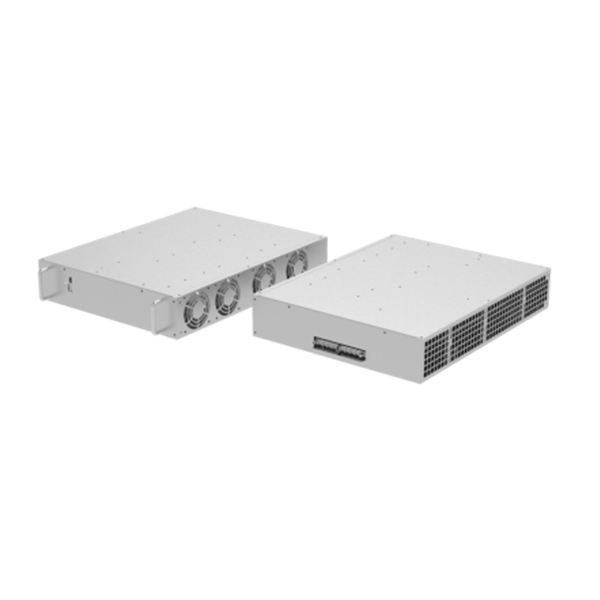

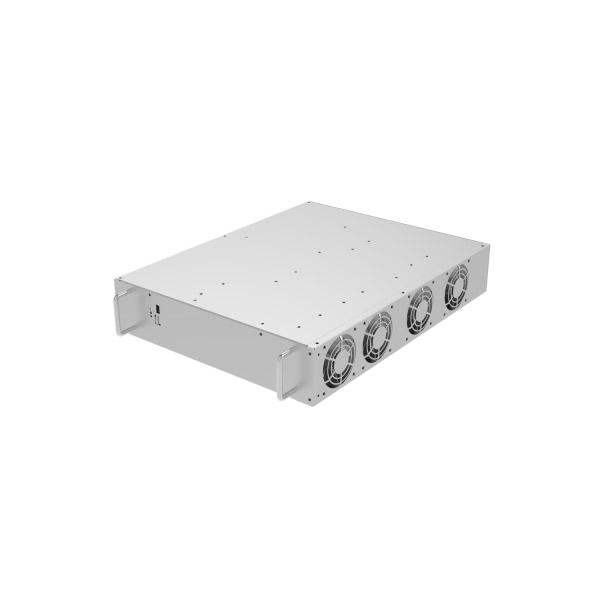

F750/F1000
充電模塊
特性：
理想的電動車充電方案
有 150V ~ 750V，150V ~ 950V 的輸出規格可選用
數位控制電源
主動式 PFC，功因大於 0.99
相容於 CCS、CHAdeMO 及 GB / T 標準
軟啟動及預充電功能
輸入端：過 / 低 - 電壓保護， 暫態電壓保護
輸出端：過電壓保護、過電流保護及輸出短路保護
模塊化和緊湊的設計，易於維護
特性：
理想的電動車充電方案
有 150V ~ 750V，150V ~ 950V 的輸出規格可選用
數位控制電源
主動式 PFC，功因大於 0.99
相容於 CCS、CHAdeMO 及 GB / T 標準
軟啟動及預充電功能
輸入端：過 / 低 - 電壓保護， 暫態電壓保護
輸出端：過電壓保護、過電流保護及輸出短路保護
模塊化和緊湊的設計，易於維護
說明
| 30kW DC Charging Module | |||||
| Model No. | F-750U (NA) | F-750 | F-1000U (NA) | F-1000 | |
| AC Input | Input Rating | 380 - 400Vac ± 15% | |||
| AC Input Connection | 3P + N + PE | ||||
| Max. Input Current (A) | 65A | ||||
| Frequency (Hz) | 50Hz / 60Hz | ||||
| Power Factor | > 0.99 Full Load | ||||
| Efficiency (%) | >94 | >94 | |||
| DC Output | Output Voltage Range | 150~750Vdc | 150~950Vdc | ||
| Max. Output Current | 75A @ 400V, 60A @ 500V, 40A @ 750V | 60A @ 500V, 31.5A @ 950V | |||
| Max. Output Power (kW) | 30kW | ||||
| Communication | Internal | CANbus / RS485 | |||
| Environmental | Operating Temperature (°C) | -30˚C ~ 50˚C, power derating from 50° C | |||
| Humidity (%) | 5% ~ 95% RH， power derating from 50° C, non-condensing | ||||
| Altitude (m) | ≦ 2000m | ||||
| IP Level | IP20 | ||||
| Noise | ≦ 65dB | ||||
| Cooling method | Forced air convection | ||||
| Mechanical | Dimension (WxDxH mm) | 395 x 500 x 89 | |||
| Weight (kg) | <18Kg | ||||
| Protection | Input Protection | OVP, OCP, OPP, OTP, LVP, Surge protection | |||
| Output Protection | SCP, OVP, OCP, OTP, LVP | ||||
| Electrical Insulation | Insulate DC output and AC input | ||||
| MTBF | MTBF > 100Khrs @ 25° C operating temperature | ||||
| Regulation | Certificate | UL2202, UL2231, IEC61851-1, IEC61851-23, IEC61851-21-2 | |||
| Safety | UL/cUL, CE | ||||
Applications
- Ready for CCS, CHAdeMO, GB/T system integration.
